Cooling channel pressure drop.

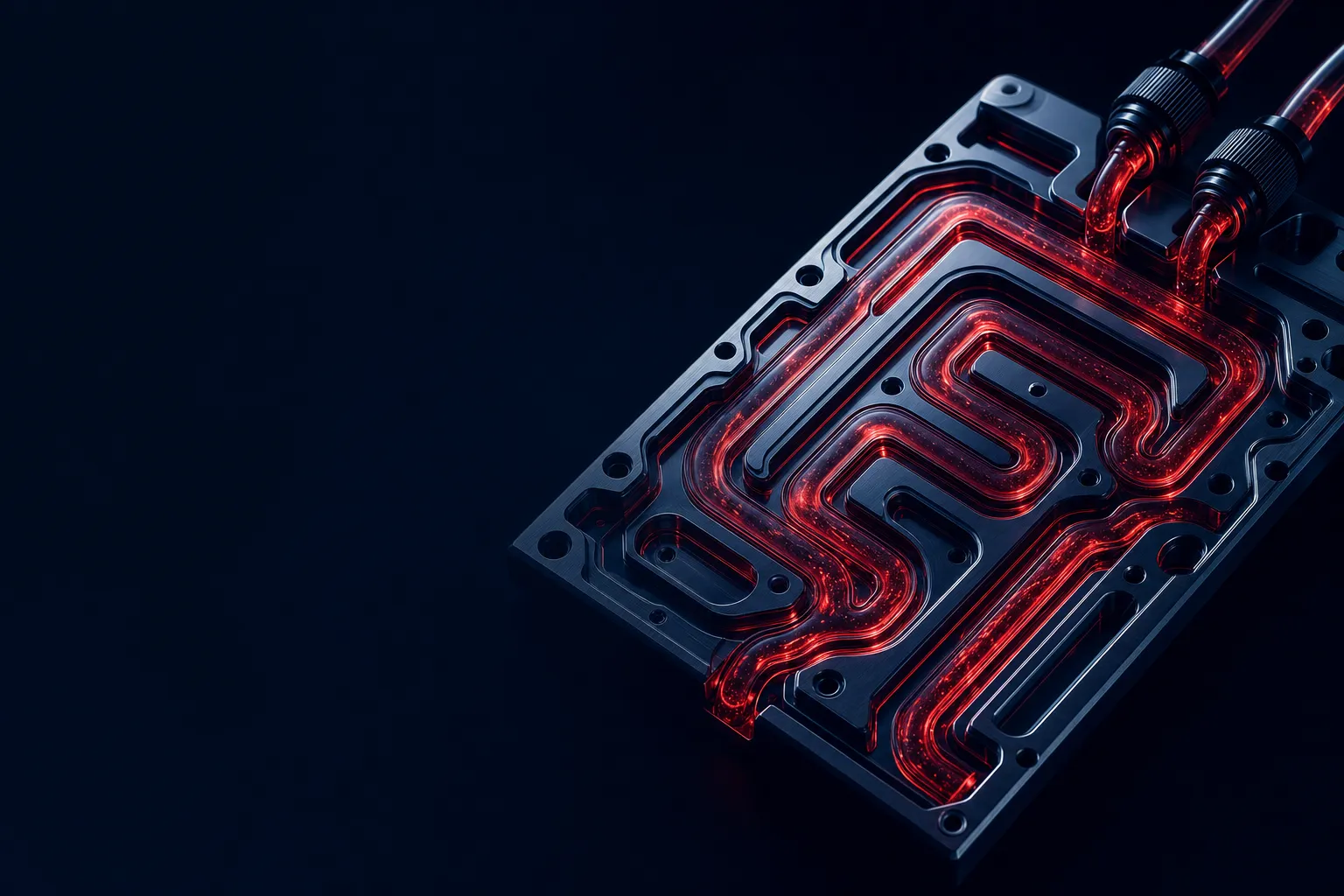

ΔP estimate for a single straight rectangular cooling channel — the kind we machine for HPC cold plates and direct-to-chip thermal interfaces. Use it to size flow rate against pump capacity, or to validate channel cross-section before machining.

Channel geometry & flow

Channel width (mm) Channel height (mm) Channel length (mm) Flow rate (L/min) Coolant fluid Surface roughness (µm Ra)

Pressure drop

ΔP across channel

—

Reynolds number —

Flow regime —

Velocity —

Friction factor (f) —

Hydraulic diameter (D_h) —

Send these numbers to a quote →

Single straight channel, fully-developed flow. For multiple parallel channels, divide flow by the number of channels and treat one. For serpentine routing, multiply by number of equivalent legs and add bend losses (~1× ΔP per 180° bend).
